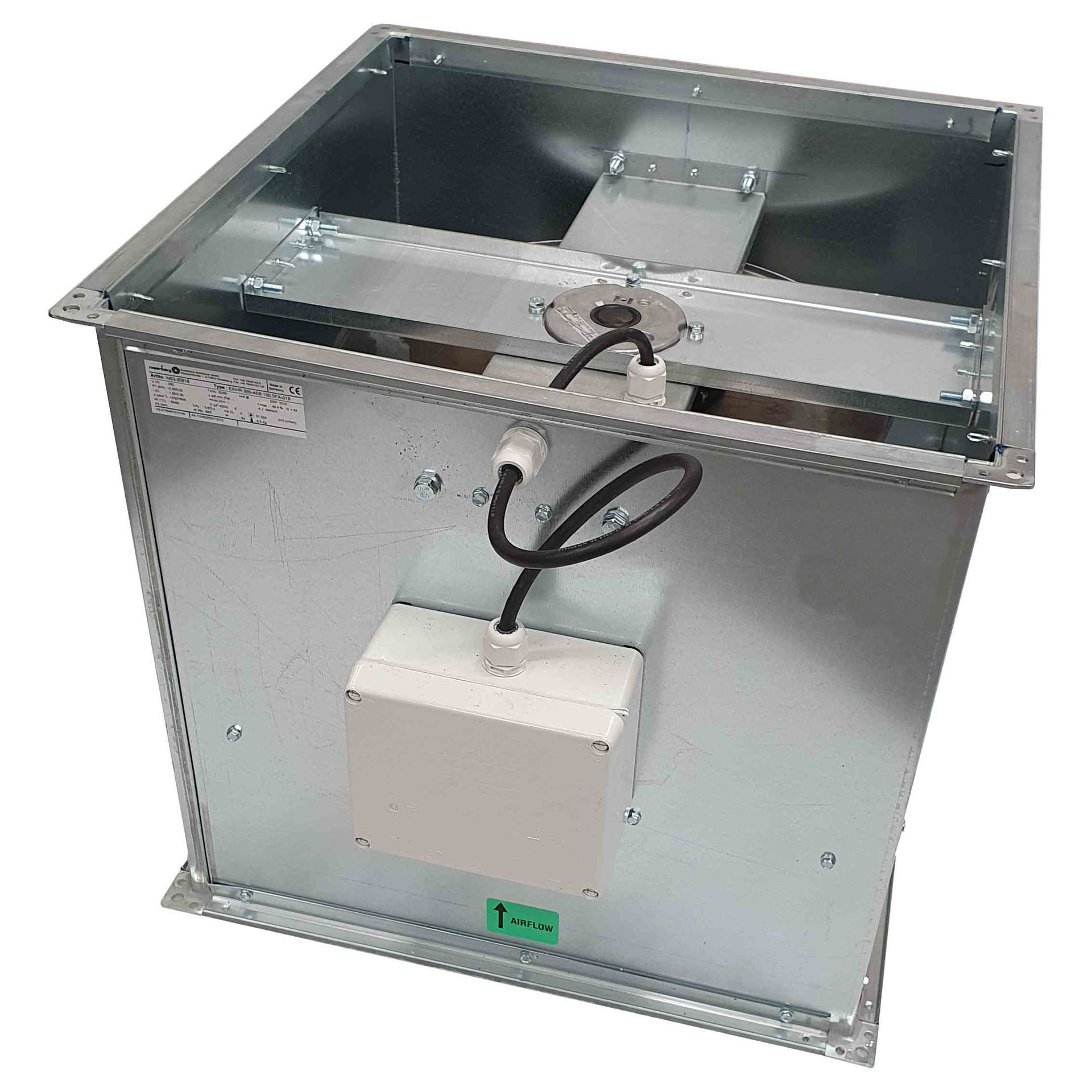

DKHR450-4SB

Airflow Range 300 m³/hr - 7850 m³/hr
SKU: N63-45301
Manufacturer: Rosenberg

EKH… - Plug Fan:

with AC-Motor and B-Impeller

pressure orientated high performance impeller
different mechanical configurations available
wide range of voltage- and frequency-controlled configurations
maintenance free operation through lifetime lubricated ball bearings


Description:
Rosenberg AC-Radial fans in combination with a voltage-controllable external-rotor motor form a very compact, efficient and optimized fan unit. They impress with low installation depth and a simple installation. Fast start-up is ensured because of well-integrated components.

Applications:
Air Handling Units / Wind Power / Railway / Compressors / Transformer cooling


Mechanical Configuration:
Plug fans, in dependence of the fan type, are available in different mechanical designs. Mounting either with horizontal or vertical motor shaft.

EKH… - Plug Fan:

with AC-Motor and B-Impeller

pressure orientated high performance impeller
different mechanical configurations available
wide range of voltage- and frequency-controlled configurations
maintenance free operation through lifetime lubricated ball bearings


Description:
Rosenberg AC-Radial fans in combination with a voltage-controllable external-rotor motor form a very compact, efficient and optimized fan unit. They impress with low installation depth and a simple installation. Fast start-up is ensured because of well-integrated components.

Applications:
Air Handling Units / Wind Power / Railway / Compressors / Transformer cooling


Mechanical Configuration:
Plug fans, in dependence of the fan type, are available in different mechanical designs. Mounting either with horizontal or vertical motor shaft.

Products specifications
Attribute nameAttribute value
Voltage (V)400v
Hertz (Hz)50 hZ
Amps (A)2.2
Kilowatt (kW)1.19
IP Rating54
Temperature Rating (°C)55
Weight (kg)18
*
*
*
*
Products specifications
Attribute nameAttribute value
Voltage (V)400v
Hertz (Hz)50 hZ
Amps (A)2.2
Kilowatt (kW)1.19
IP Rating54
Temperature Rating (°C)55
Weight (kg)18
