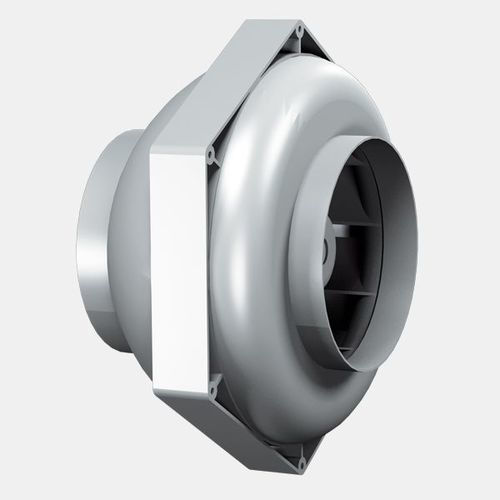

RS250 L Tube Fan

Airflow Range 50 m³/hr - 1020 m³/hr
SKU: F00-25089

Casing

All sizes have an elegant, high-impact, flame-retardant plastic housing with an integrated terminal box IP44 and guide vanes.

Impellers

The impellers up to size 250 are made of plastic and from size 315 are made of galvanised sheet steel. The impellers are mounted directly on the rotors of the external rotor motors and are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11.

Electrical connection

The electrical connection is made through a terminal box mounted on the casing with protection class IP44.

Assembly

Rigid folded spiral-seam tubes (Spiro), flexible aluminium or plastic tubes with standardised diameter can be used. Rosenberg tube fans can be used in all mounting positions. When used over several floors of a building, the local fire safety regulations must be observed.

Casing

All sizes have an elegant, high-impact, flame-retardant plastic housing with an integrated terminal box IP44 and guide vanes.

Impellers

The impellers up to size 250 are made of plastic and from size 315 are made of galvanised sheet steel. The impellers are mounted directly on the rotors of the external rotor motors and are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11.

Electrical connection

The electrical connection is made through a terminal box mounted on the casing with protection class IP44.

Assembly

Rigid folded spiral-seam tubes (Spiro), flexible aluminium or plastic tubes with standardised diameter can be used. Rosenberg tube fans can be used in all mounting positions. When used over several floors of a building, the local fire safety regulations must be observed.

Products specifications
Attribute nameAttribute value
Voltage (V)230v
Hertz (Hz)50 hZ
Amps (A)0.56
Kilowatt (kW)0.13
Temperature Rating (°C)70
*
*
*
*
