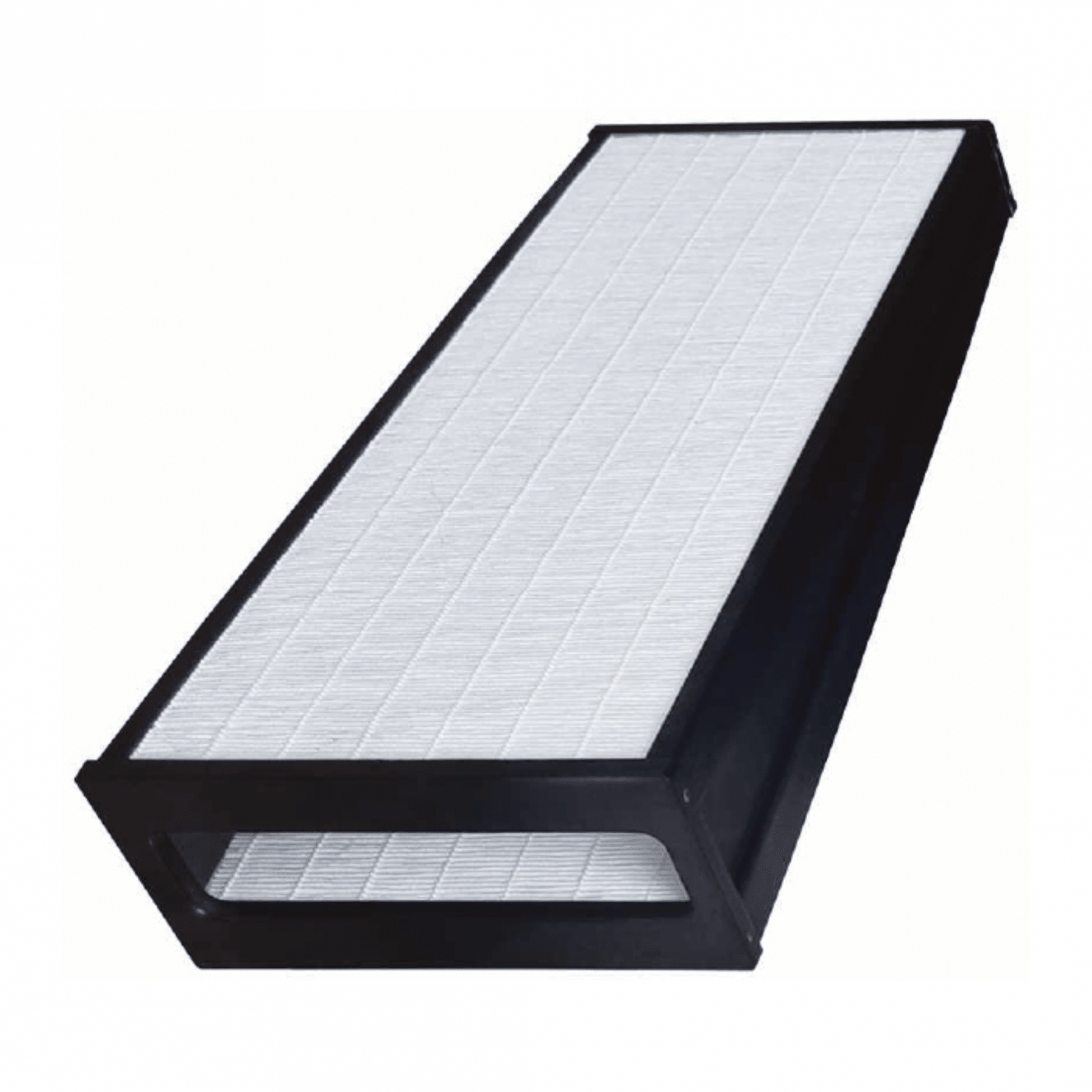

THE-MD
THE-MD
High Efficiency Particulate Air filters (HEPA - ULPA) Terminal filtration in air treatment units for CLEANROOM applications. Efficiency EN1822: E10-H14
Product Files
THE-MD Data Sheet
GENERAL FEATURES
Efficiency EN1822: E10-H14
Media: Mini pleat fiberglass paper
Frame: Plastic or galavanized steel
Sealant: Polyurethane
Separator: Continuous thermoplastic beads
Gasket: Flat neoprene or half-round monobloc polyurethane
Final pressure drop: 600 Pa
Maximum T° in continuous service: 70°C
Humidity: 70-80% RH
ADVANTAGES
High airflow
Low pressure drop
Individual leak test on 0,3 µm at 0,45 m/s to DIN 24.184 standard
MPPS individual efficiency test on 0,12 µm at 0,45 m/s (scanning test) according to EN1822 standard
Individual scanning test delivered with the filter
Double labeling for traceability
Tested for food contact
according to CE 1935/2004
Certified for microbial
development (ISO 846-VD 6022)
Overview
Specifications
Contact Us
GENERAL FEATURES
Efficiency EN1822: E10-H14
Media: Mini pleat fiberglass paper
Frame: Plastic or galavanized steel
Sealant: Polyurethane
Separator: Continuous thermoplastic beads
Gasket: Flat neoprene or half-round monobloc polyurethane
Final pressure drop: 600 Pa
Maximum T° in continuous service: 70°C
Humidity: 70-80% RH
ADVANTAGES
High airflow
Low pressure drop
Individual leak test on 0,3 µm at 0,45 m/s to DIN 24.184 standard
MPPS individual efficiency test on 0,12 µm at 0,45 m/s (scanning test) according to EN1822 standard
Individual scanning test delivered with the filter
Double labeling for traceability
Tested for food contact
according to CE 1935/2004
Certified for microbial
development (ISO 846-VD 6022)
Products specifications
Attribute name
Attribute value
Temperature Rating (°C)
70
Media
Mini pleat fiberglass paper
Efficiency
Efficiency EN1822: E10-H14
Final Pressure Drop (pa)
600
