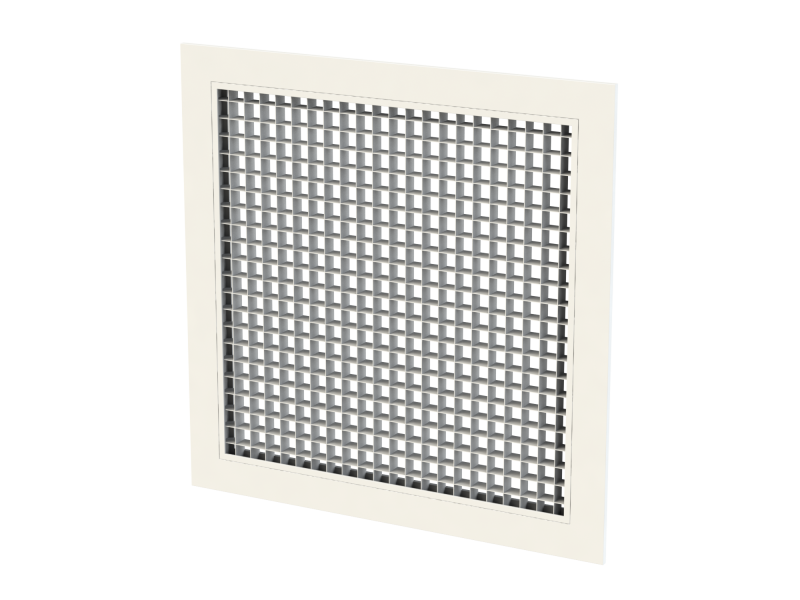

Series ECG egg crate grilles are the industry standard extract grille. Comprising a core with over 90% free area with vanes parallel to airflow, egg crate grilles are capable of handling huge air volumes with minimal noise generation or pressure drop. Ideal for areas requiring high changeover rates like restaurant kitchens, painting booths etc. A 45° core is also available, with a similar high free area, but introducing non vision properties from certain angles, or giving an angled throw if used for supply.
Material: Aluminium frame and core
Sizes Minimum: 100mm x 50mm Maximum: 2900mm x 2900mm Maximum core size is 1300mm x 1300mm, above this mullions will be used
Finish Standard: Satin anodised (AA5) frame (not with 50FE), mill aluminium core
Free area Approx 90%
Other RAL colours available upon request
